Konecranes Gottwald

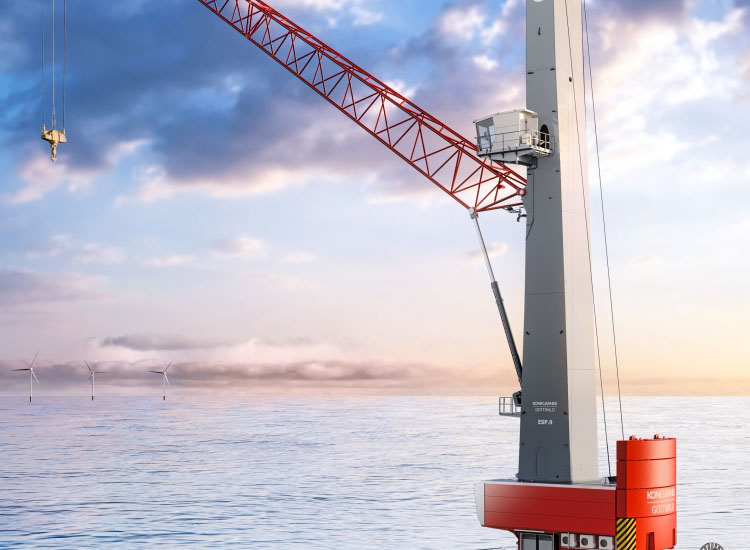

ESP.9 Mobile Harbour Crane

High performance in all applications

The ESP.9 Konecranes Gottwald Mobile Harbour Cranes are designed as high-performance cranes for cargo handling to serve vessels up to super post-Panamax class. They have a working radius of up to 61 m, lifting capacities of up to 200 t and lifting speeds of up to 140 m/min. In the two-rope variant, these cranes offer high flexibility when handling containers as well as general and project cargo. As four-rope grab cranes (as ESP.9B), they have a 74 t grab load curve to handle bulk cargo.


Smart crane features for safety, ergonomics and performance

There are many innovative smart crane features on offer for Konecranes Gottwald Mobile Harbour Cranes – from intelligent and digital solutions for general crane operation to helpful features for individual cargo types. These offer a high level of safety for staff, cargo and equipment. You also increase comfort for crane operators and service technicians in addition to improving availability and handling rates.

ESP.9 – for handling all types of cargo

Containers

Loading and unloading of fully laden containers to serve vessels of super post-Panamax class:


  • Single-lift up to the 20th row
  • Twin-lift up to the 17th row

General cargo

For fast and efficient handling of all types of general cargo:


  • Powerful 74 t lifting capacity curve up to 44 m
  • Lifting speeds of up to 120 m/min

Project cargo

For precise handling of bulky and heavy project cargo:


  • 200 t lifting capacity up to a radius of 20 m
  • 125 t lifting capacity up to a radius of 29 m

Bulk cargo

High-performance bulk handling on Capesize class vessels:


  • 63 t grab load curve in A8 classification up to a radius of 38 m
  • 74 t grab load curve in A7 classification up to a radius of 39 m

Technical Specifications

VARIANT
ESP.9 ESP.9B
DIMENSIONS & WEIGHT
RADIUS
- Minimum radius 12 m 12 m
- Maximum radius 59 / 61 m 50 m
BOOM PIVOT POINT 23.6 / 29.3 m 23.6 m
TOWER CAB (EYE LEVEL) 27 / 32.7 m 29.6 m
PROPPING BASE 18.3 m x 13 m 18.3 m x 13 m
CHASSIS IN TRAVEL MODE 22.2 m x 9.6 m 22.2 m x 9.6 m
WEIGHT (APPROX.) various 635 t
TRAVEL GEAR
AXLES 10 10
STEERED AXLES 10 10
DRIVEN AXLES 2 (3) 2 (3)
CRAB STEERING 25° 25°
VERTICAL AXLE COMPENSATION ± 250 mm ± 250 mm
WORKING SPEEDS
HOISTING/LOWERING 0 - 120 m/min 0 - 140 m/min
SLEWING 0 - 1.6 rpm 0 - 1.6 rpm
LUFFING (AVERAGE) 65 m/min 65 m/min
TRAVELLING 0 - 80 m/min 0 - 80 m/min
